Specifications:
- Model Number: Wind Solar 3KW
- Application: Commercial
- Battery Type: Lithium Ion
- Output Voltage (V): 3KW
- Output Frequency: 50/60Hz
- Pre-sales project design: Y
- Rated Power: 600W-3KW

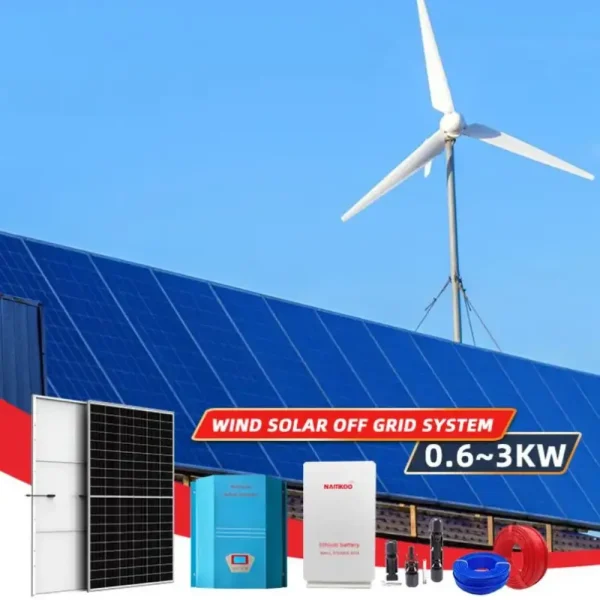

- Product name: Wind Solar Hybrid Power System
- Warranty: 5 Years
- Generator type: 3 Phase Permanent-magnet
- Rated wind speed: 12m/s
- Rated Voltage: 48/96V
- Controller: Wind Solar Hybrid Controller
- Type: Off-grid System
- Solar panel type: Monocrystalline Silicon
- Blade Material: Extra-strong Fiber Glass
- Supply Ability: 10000 Set/Sets per Quarter
3KW Wind-solar Hybrid System Configuration:
- Mono Solar Panel : 400w (4 Pcs)
- Wind Turbine: Rated Power 1500W (1Pcs)
- Wind Solar HybridController: Rated Solar Input Power 3000W (1 Pcs)
- Battery: 51 . 2V 200AH Lifepo4 (4 Pcs)
- Off Grid Inverter: Rated Power 3000W (1 Pcs)
- Mounting Bracket: Aluminum Bracket For Roof (1 Set)
- PV array combinerbox: Cuicuit Breaker Protection (1 Set)
- PV Cable : 4mm² UV Protection (100 meters)
- MC4 Compatible Connector : 30A / 1000V DC,IP67 rated (4 Pairs)
Packaging Details:
- 1 x Wind Driven Generator
- 3/5 x Wind Wheel
- 1 x Nose Cone
- 1 x Screw Sand Nuts
- 1 x Controller
- 1 x Manual
- inner packing:foam
outside packing:carton+film
