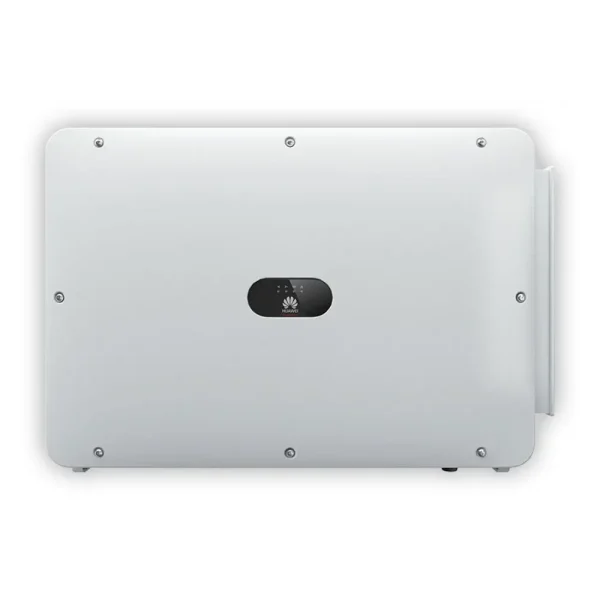

Huawei SUN2000-215KTL-H3 – General Data
Operating temperature range: -25 ~ +60 °C
Relative operating humidity: 0 ~ 100 %
Operating altitude: max. 4,000 m
Cooling: Intelligent air cooling
Display: Satus LED’s
Communication: RS485, MBUS, USB
Weight (with mounting plate): ≤ 86 Kg
Dimensions: 1,035 x 700 x 365 mm
Protection class: IP66
Topology: Transformerless
DC connection: Stäubli MC4 EVO2
AC connection: waterproof connection, OT / DT terminal.
Huawei SUN2000-215KTL-H3 – Efficiency
Max. Efficiency: ≥ 99.00 %
European efficiency: ≥ 98.60 %
Huawei SUN2000-215KTL-H3 – Input DC
Max. Input voltage: 1,500 V
Number of MPP trackers: 3
Max. Input current per MPPT: 100A/100A/100A
DC connections: 4/5/5
Starting voltage: 550 V
MPPT operating voltage range: 500 V ~ 1,500 V
Rated voltage: 1080 V
Huawei SUN2000-215KTL-H3 – Output AC
Main connection: three-phase
Rated Power: 200,000W
Max Apparent AC Power: 215,000VA
Maximum active AC power (cosφ=1): 215,000 W
Rated voltage: 800V, 3W + PE
Rated output current: 144.4 A
Rated mains frequency: 50 Hz / 60 Hz
Maximum output current: 155.2 A
Adjustable power factor: 0.8 cap. … 0.8 ind.
Total Harmonic Distortion (THD): < 1%
Huawei SUN2000-215KTL-H3 – Protective devices
Disconnector on input side: Yes
Islanding detection: Yes
AC overcurrent protection: Yes
DC reverse polarity protection: Yes
String monitoring: Yes
DC overvoltage arrester: Type II
AC overvoltage arrester: Type II
Insulation monitoring: Yes
Fault current monitoring: Yes
Huawei SUN2000-215KTL-H3 – included in delivery
PV connector
Bluetooth dongle (for commissioning via FusionSolar app)
Bracket
